APPLICATIONS.

Proven expertise across diverse electronic product categories. Client work is confidential — projects are presented by application category rather than by name.

Application categories

01APPLICATIONS — PLATES

APP-01
Square flight-controller board with a corner mounting pattern, stacking headers on two edges and motor output pads along each side

Drone Control Electronics

Flight controller PCBs, ESC integration, and power distribution boards for autonomous UAV platforms, focusing on vibration mitigation and EMI rejection.

  • Embedded
  • Power
  • Sensors
APP-02
Industrial controller board with a row of screw terminals along the back edge, a strip of status indicators, and relays behind the logic section

PLC Replacement Control Boards

Custom industrial controllers replacing off-the-shelf PLC modules with optimized form factors, rugged IO shielding, and lower component costs.

  • Industrial
  • Relay Control
  • Custom
APP-03

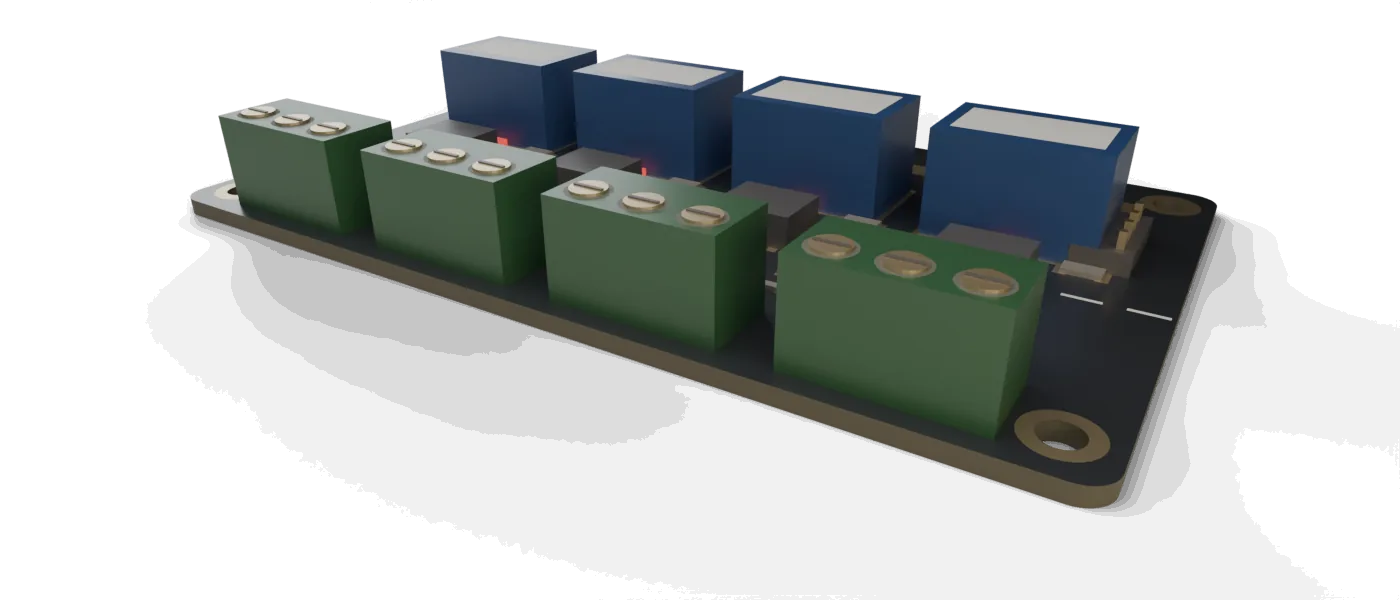

Automation board with four sealed relays above a rank of screw terminals, one indicator per channel, isolation gap between the two halves

Relay & Automation Boards

Multi-channel high-voltage relay control systems, safety interlocks, and optocoupler-isolated industrial digital inputs/outputs.

  • Industrial
  • Power
  • Safety
APP-04
Single-board-computer layout: large processor package flanked by memory, Ethernet and USB shells, a card socket, ribbon connectors and a GPIO header

Linux-Based Embedded Systems

ARM Cortex-A series Carrier Boards with DDR memory interfaces, eMMC storage, Gigabit Ethernet transceivers, and high-speed USB hubs.

  • Embedded Linux
  • DDR
  • High-Speed
APP-05

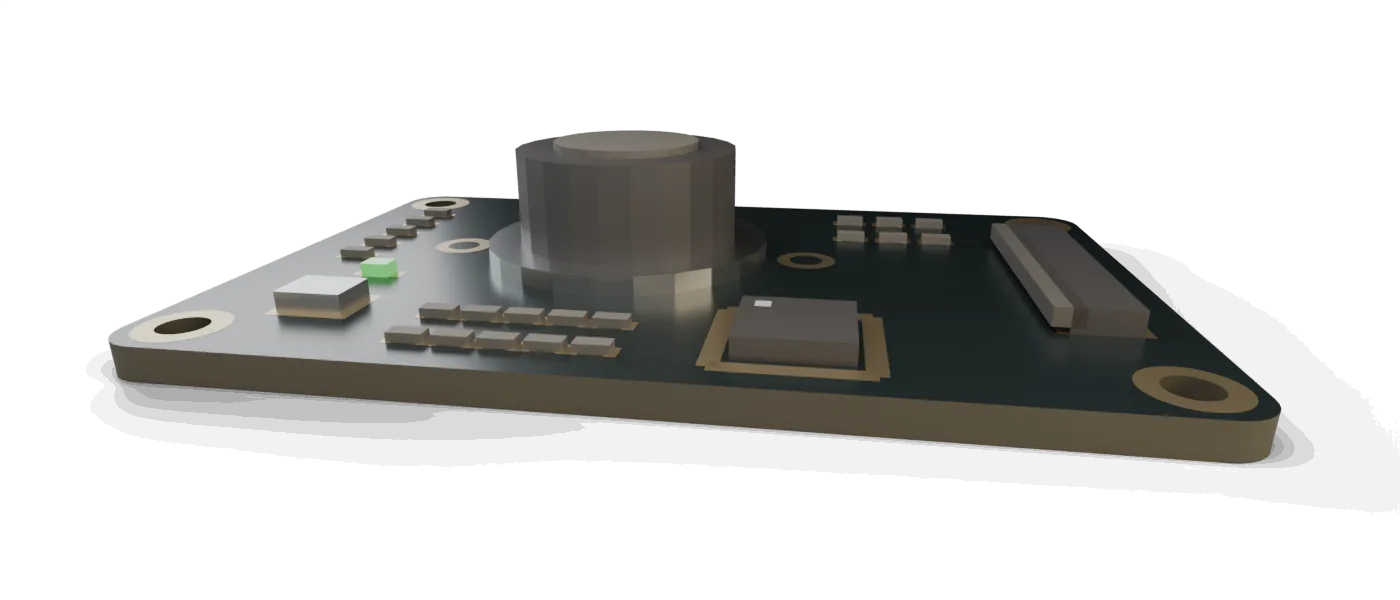

Compact camera board with a threaded lens mount and a ribbon connector on one edge

MIPI CSI/DSI Camera Boards

High-speed camera interfaces for machine vision pipelines, matching layout lengths for MIPI CSI differential pairs.

  • Camera
  • MIPI
  • High-Speed
APP-06

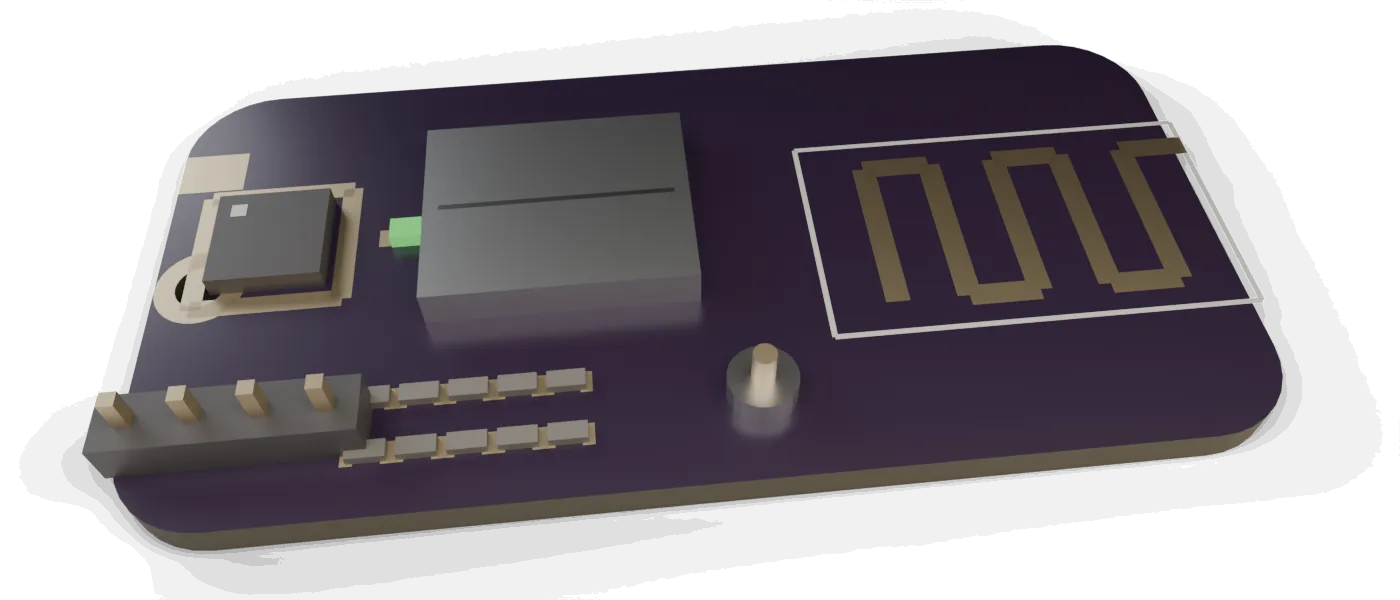

Slim radio board with a meandered PCB antenna in its keep-out at one end and a shield can alongside

LoRa Communication Boards

Sub-GHz RF designs with antenna matching networks, low-power sensor interfaces, and compact enclosures for IoT tracking networks.

  • RF
  • LoRa
  • Low-Power
APP-07

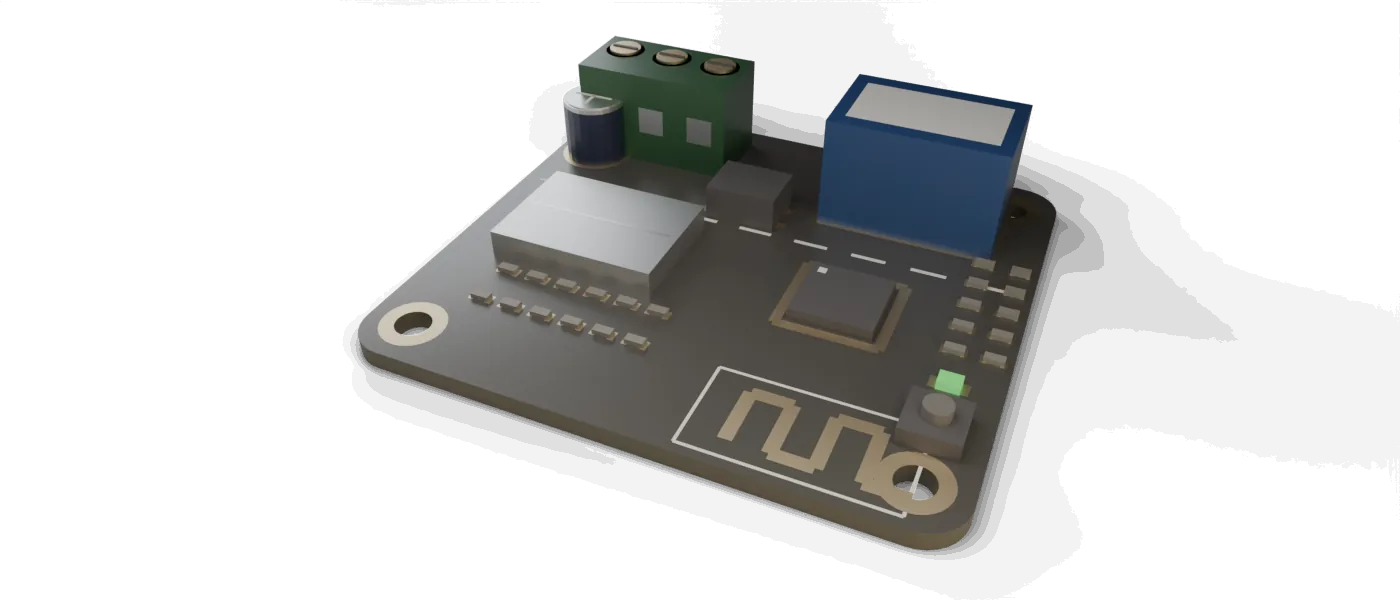

Home automation board with a shielded wireless module, PCB antenna, a button, one relay channel and mains screw terminals

Smart-Home Electronics

Compact home automation controllers featuring Zigbee/Wi-Fi wireless integrations, low thermal signatures, and solid-state switches.

  • IoT
  • Wireless
  • Automation
APP-08

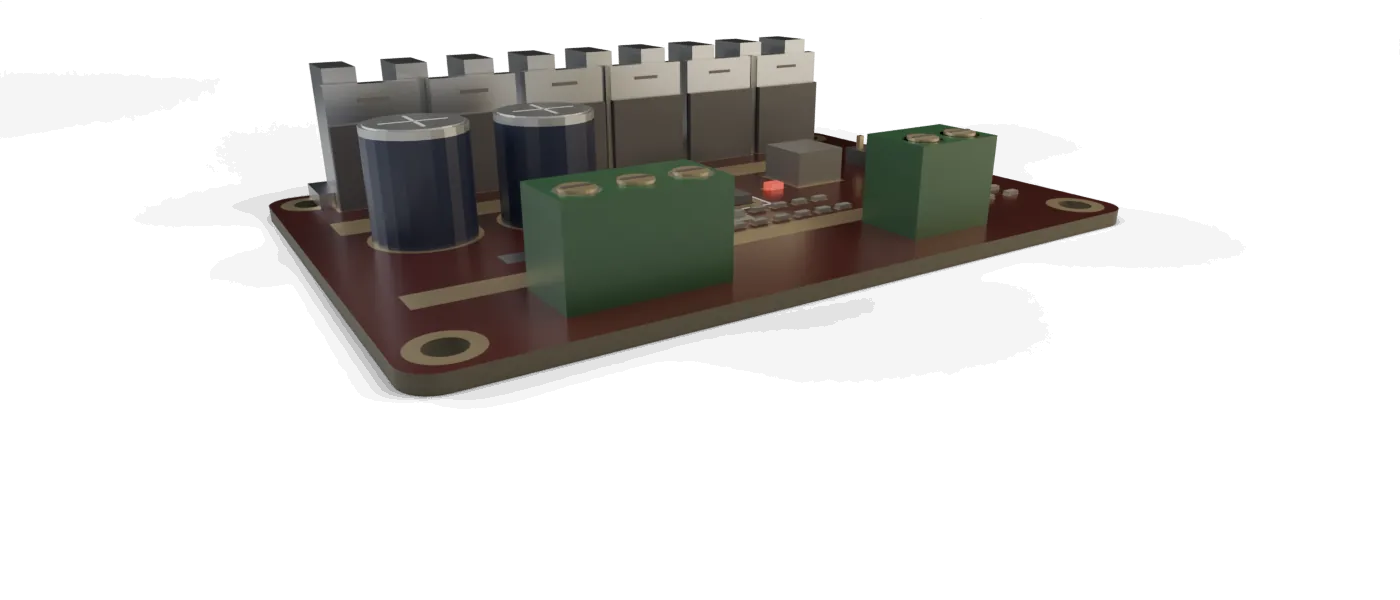

Motor drive board with six upright switching transistors under a finned heatsink along the back edge, bulk capacitors and phase terminals

Motor Controllers

BLDC and stepper motor driver PCBs, implementing phase current sense feedback, high frequency MOSFET switching, and EMI filters.

  • Motor Control
  • Power
  • EMC
APP-09

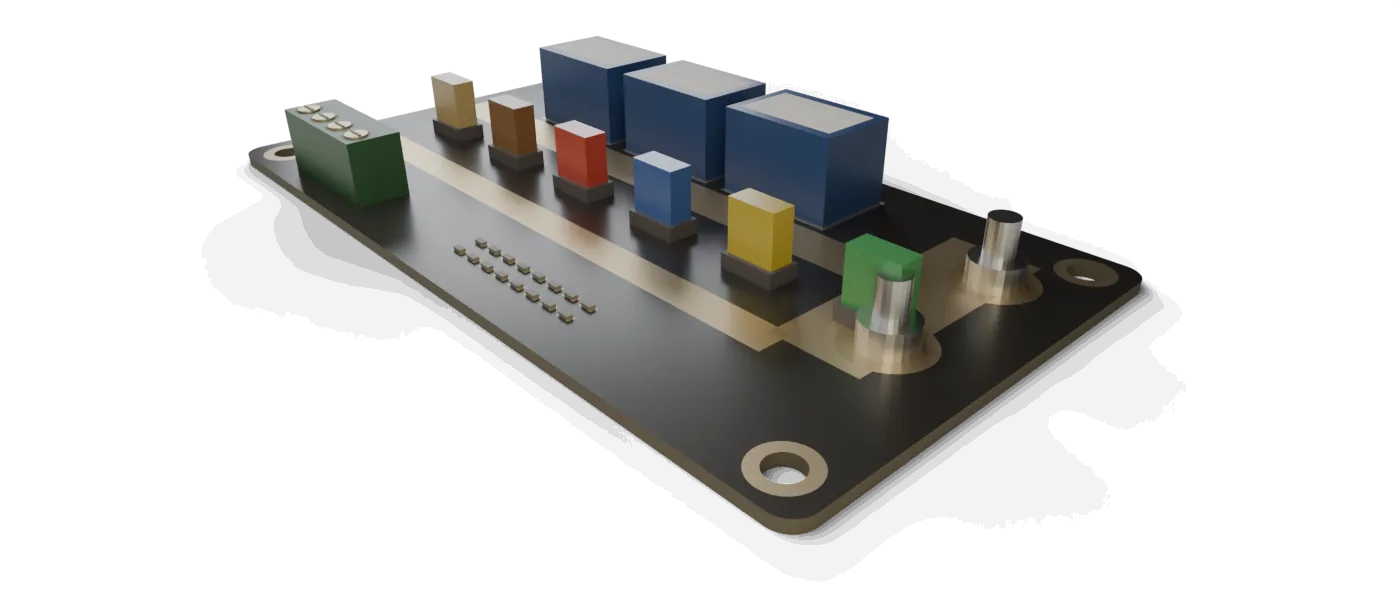

Automotive distribution board with a row of colour-coded blade fuses on wide copper bus bars, relays behind and threaded studs

Vehicle Fuse Box & High-Current Distribution

Automotive power distribution PCBs using multi-layer heavy copper stackups, fuse holders, and high-vibration connectors.

  • Automotive
  • High-Current
  • Power
